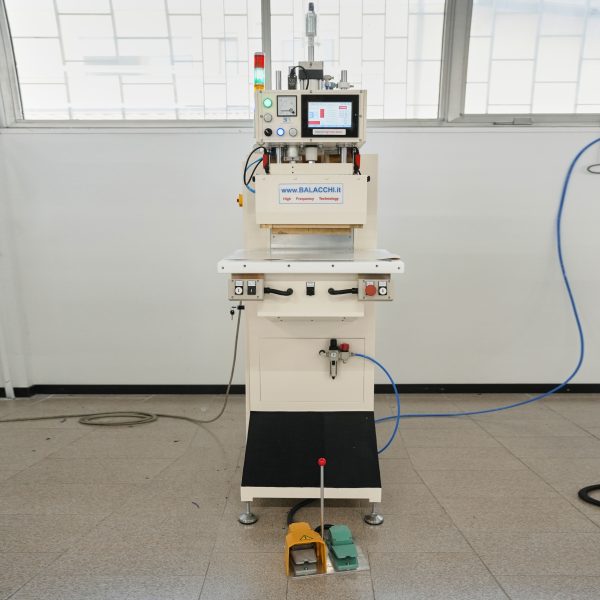

BR3PT450 HF Mini Welding Machine

Model BR3PT450 is a compact, economical, and low-power machine perfect for a variety of applications. Whether used alone or as a complement to larger HF equipment, the BR3PT450 is designed for delicate tasks requiring precision and careful manipulation.

Key Features

Portable and Versatile: Perfect for on-site repairs and flexible enough for both factory and field use.
Detailed Welding Operations: Ideal for jobs needing multiple types of welding on small areas, ensuring high- quality results every time.

PRESS

•    C-frame structure made of quenched and tempered electrowelded steel, machined with CNC
•    Distance between piston center and machine body: 450 mm
•    Distance between welding plane and electrode holder plate: 190 mm, adjustable
•    Welding pressure: 300 kg with adjustable mechanical stop
•    Safety system to prevent hand crush
•    Press control with dual-hand buttons/pedal
•    Worktable dimensions: 500 mm x 1000 mm
•    Worktable height: 1030 mm

HF GENERATOR

•    Resonant cavity generator
•    Operating frequency: 27.125 MHz ± 0.6%
•    Power delivered to the electrode: 3 kW
•    Metal-ceramic triode with forced air cooling
•    High voltage to low voltage transformers type in air
•    Silicon diode rectifier bridge with overvoltage protection

CONTROLS AND ADJUSTMENTS

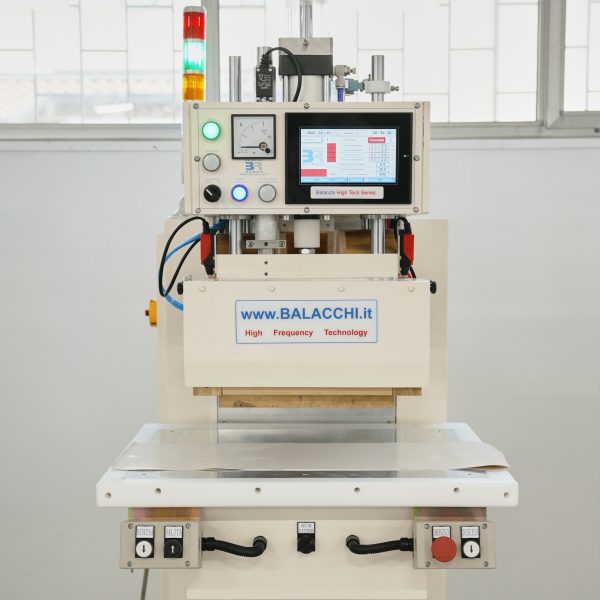

• Controls via touchscreen panel designed for simplicity and ergonomic needs
• The PLC program ensures the welding process remains within the set intervals for job execution and emits alarm signals or stops automatically if the expected parameter varies, ensuring high-quality welding: completely avoiding insufficient and/or weak weld seams or material overheating
• The PLC can store up to 50 programs with 32 different welding parameters to adjust: power, pressure, time, speed, movement, cooling, etc.

ELECTRICAL AND PNEUMATIC SUPPLY

•    Power supply voltage: 400 V three-phase + N + T
•    Compressed air: 6 Bar, dehumidified from your system
•    Dimensions: 1000 mm x 1200 mm
