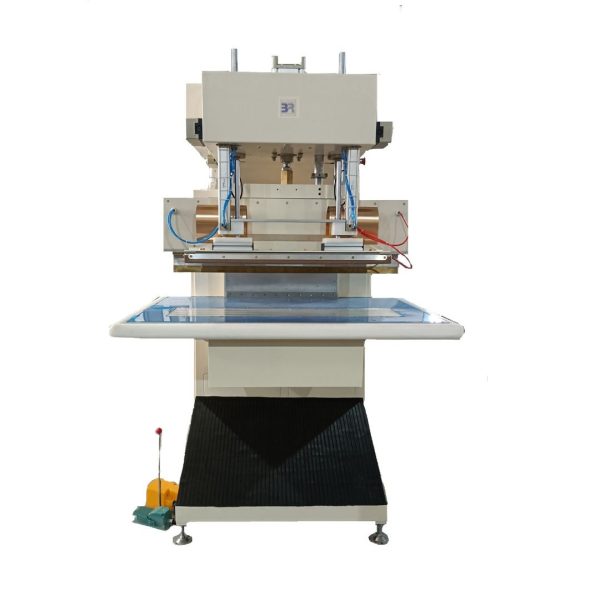

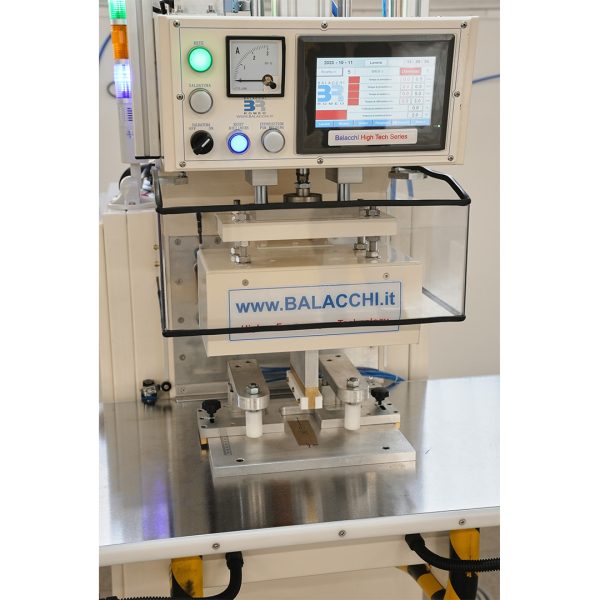

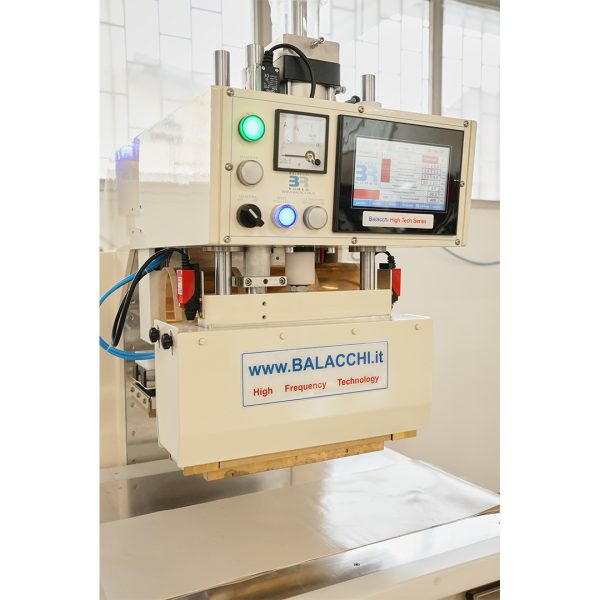

BR4PT400 HF Welding Machine

Key Features

• Compact and Powerful: Delivers 3 to 6 KW, ideal for precise welding of small parts.
• Ergonomic Design: Strong C construction and excellent visibility for seamless operation.
• User-Friendly: Intuitive controls make it easy for operators of all skill levels.
• Versatile Applications: Perfect for advertising, technical covers, medical, automotive, inflatable items, and waterproof clothing.
• Customizable Options: Available with lasers, personalized electrodes, various welding rods, lights, and wheels.
• Precision and Control: Flawless welds with advanced design.
• Efficiency: Minimize downtime, maximize output. Adaptability: Suited for small material surfaces.

TECHNICAL PERFORMANCE

• Pressing force: 750 Kg
• Power: 4 KW
• Working frequency: 27.125 MH
• Working table: 1000 x 500 mm

PRESS

• Completely screened welding slab
• Dimension welding table 1000 x 500 mm with cut out in the middle
• Adjustable welding pressure from 200 kg to 750 Kg
• Press opening 200 mm
• Adjustable stroke 200 mm
• Upper press platen surface 500 x 200 mm

PNEUMATICS

• Balacchi components
• Cylinder 125mm diameter
• Setting from 1 to 8 BAR

HF GENERATOR

• Generator with resonant cavity
• Ceramics triode model BM3 with forced air cooling
• Air transformers from high tension to low tension
• Tensions rectifier bridge with diodes of silicon complete of protections for the overstrains
• Suppressor of discharges model SCR
• Feed 400v three-phases

SOFTWERE AND MANAGEMENT

• Software exclusively developed by Balacchi for the complete control and regulation of the entry welding process
• PLC program ensures welding process remains within the prescribed narrow intervals during the work execution.
• welding parameter changes. In this manner high quality welding is guaranteed: insufficient/weak welding seam or overheating of material are completely avoided.
• PLC can store up to 50 recipes with 32 different welding parameters to adjust: power output, pressure, time, velocity, press moving, cooling etc.

WEIGHT 550 Kg DIMENSIONS 1200 mm x 1050 mm x 1900(h.) mm
