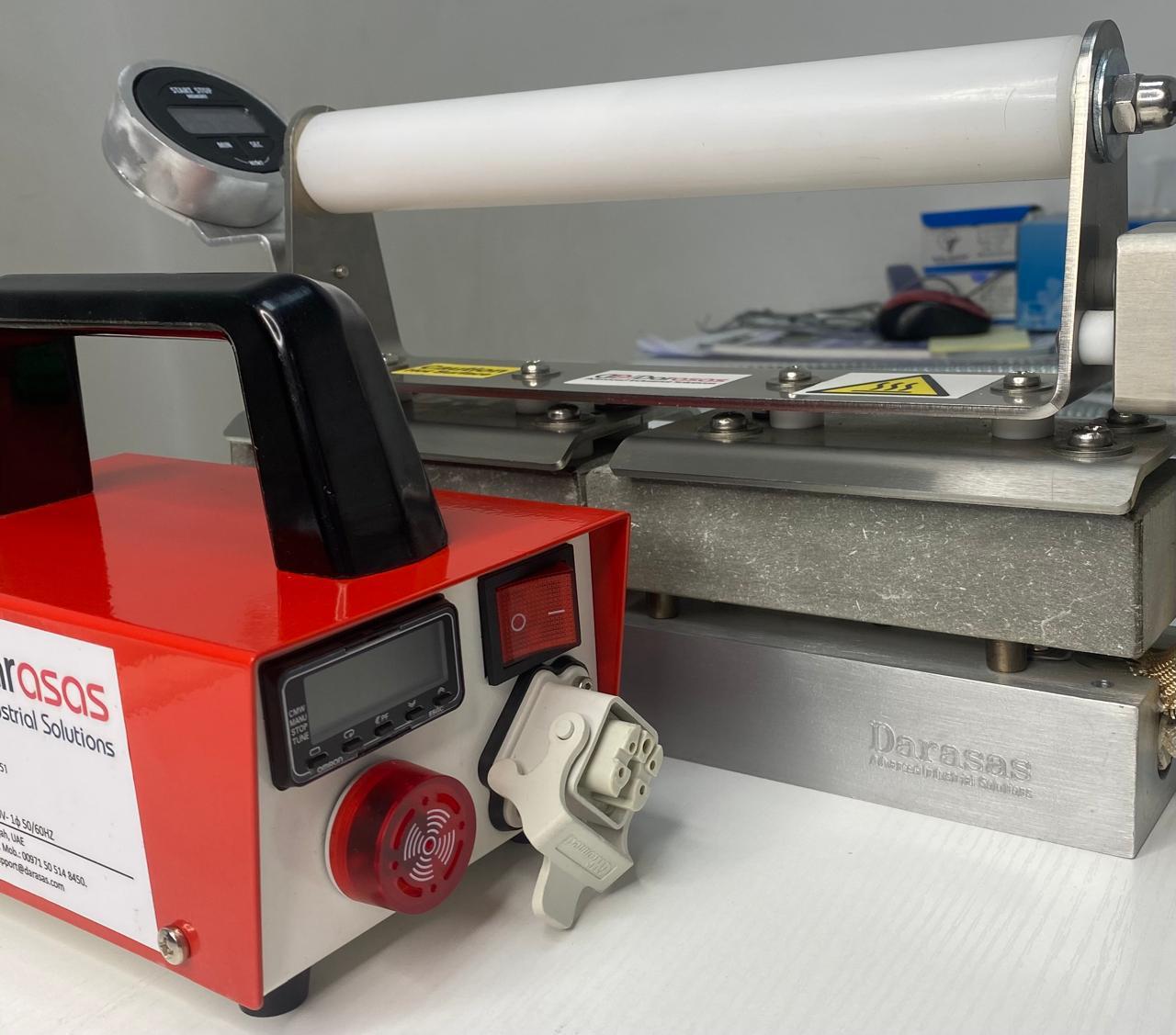

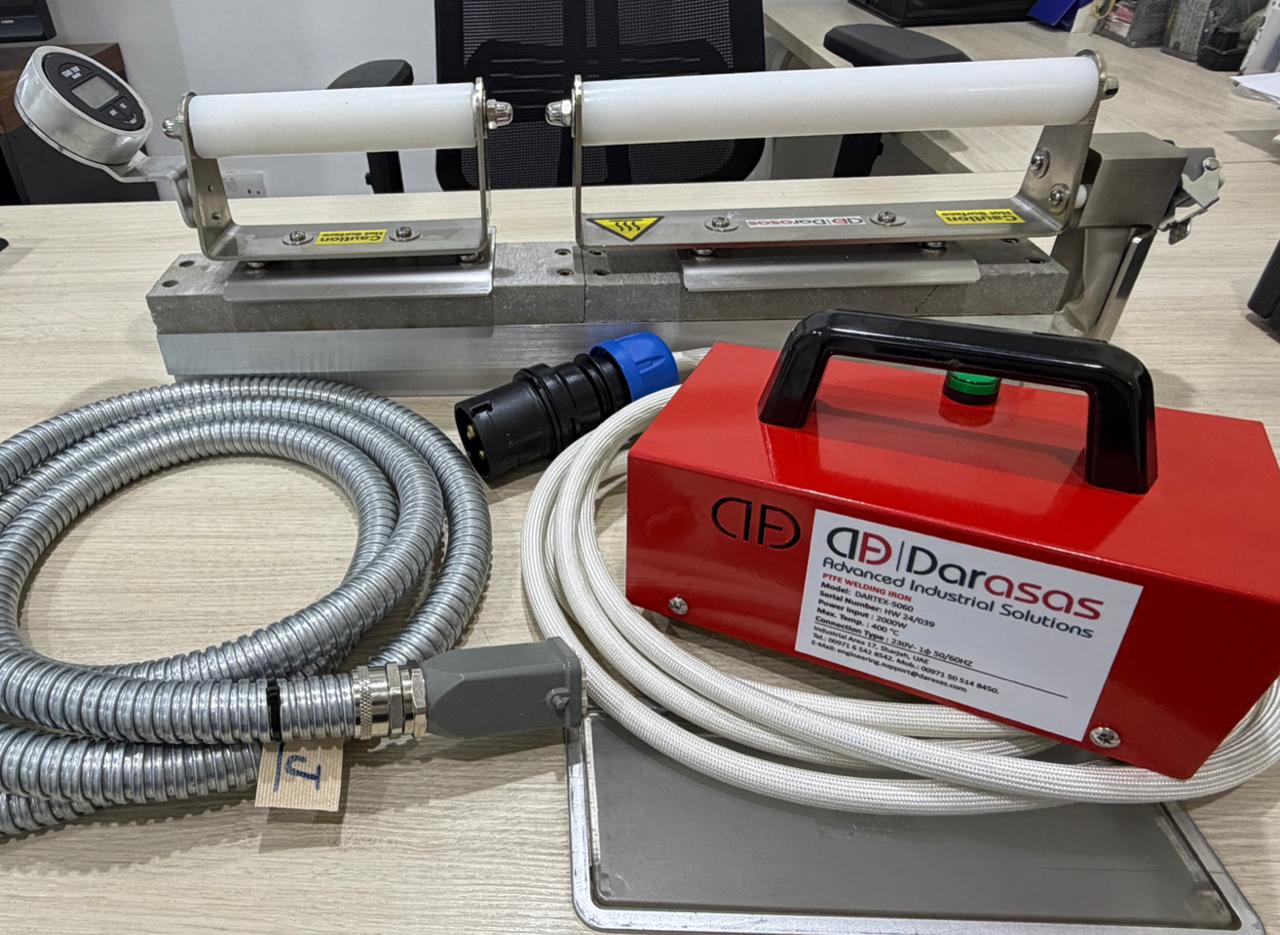

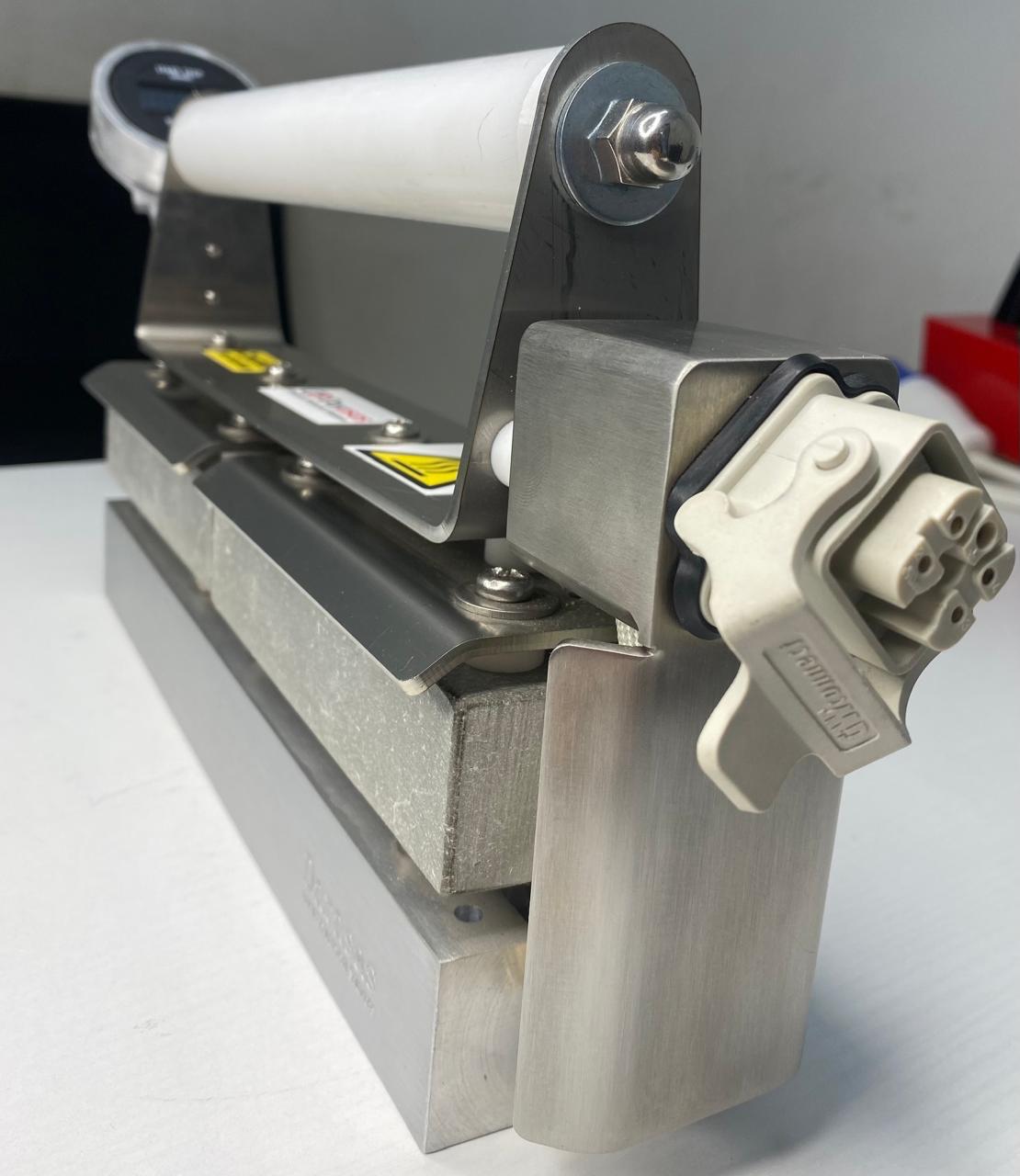

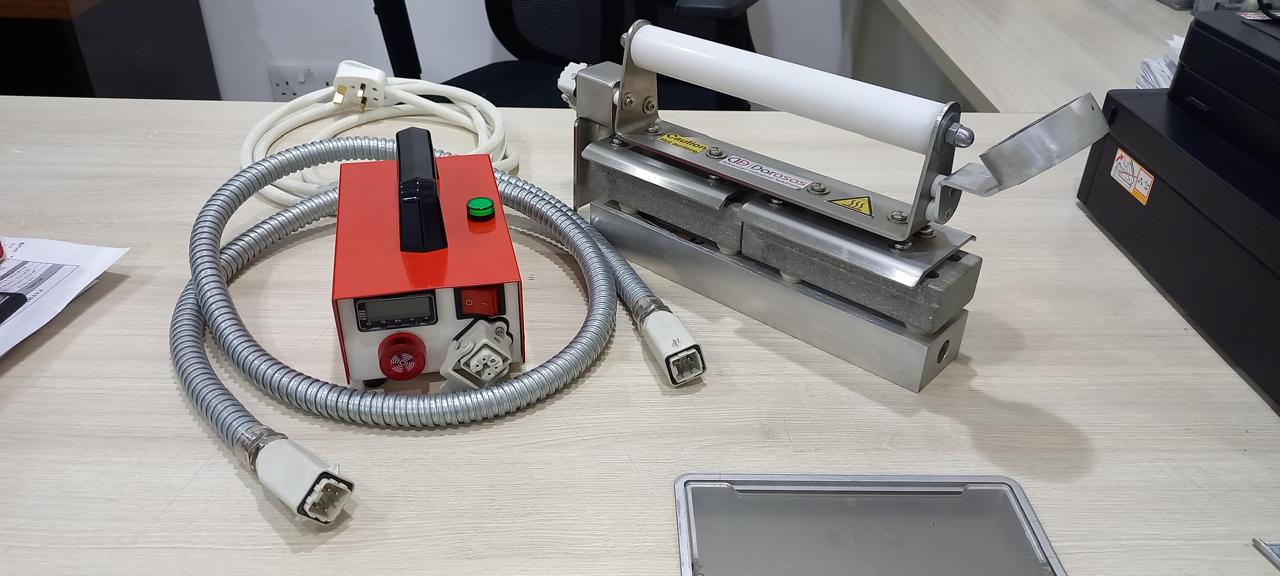

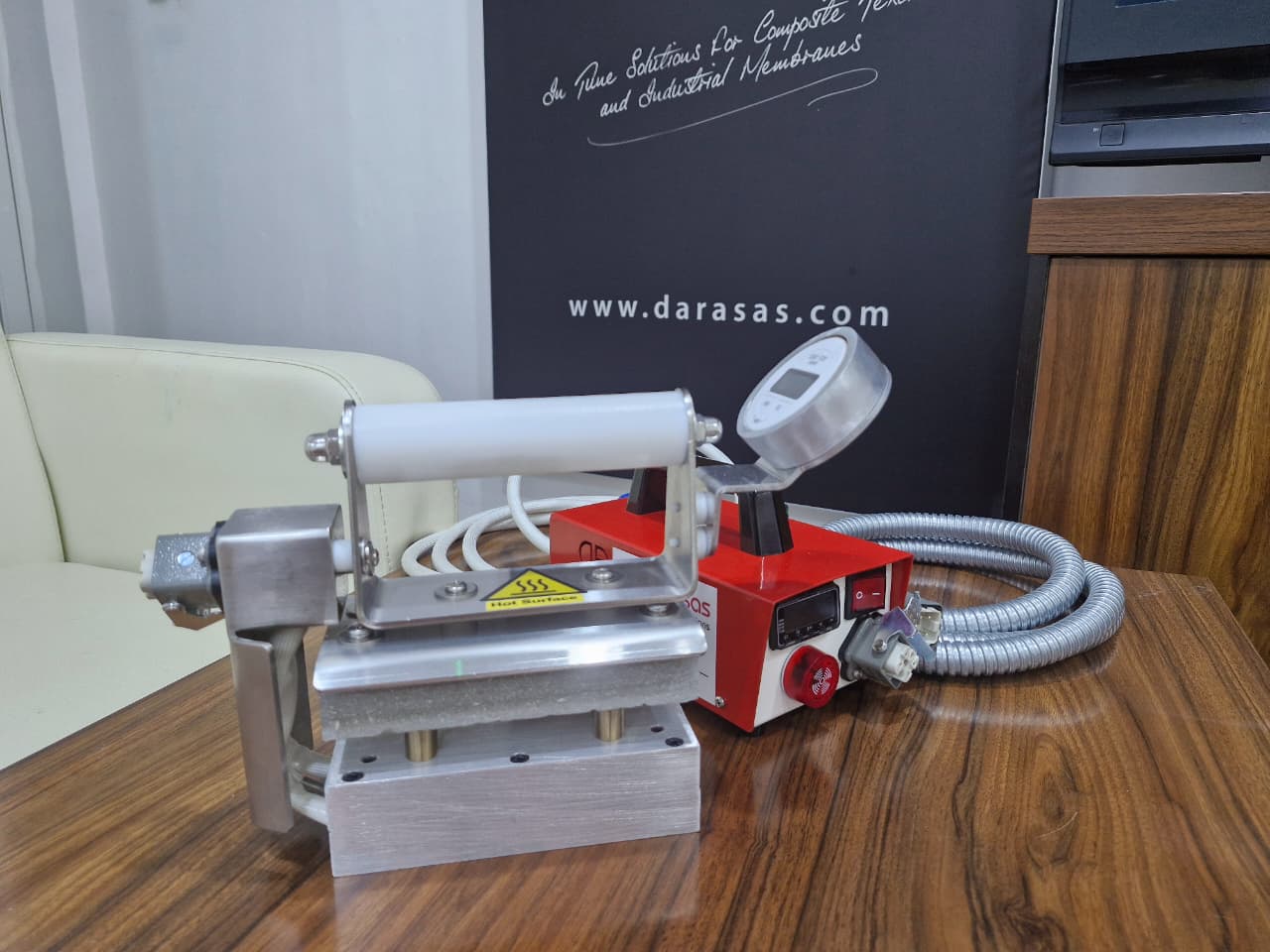

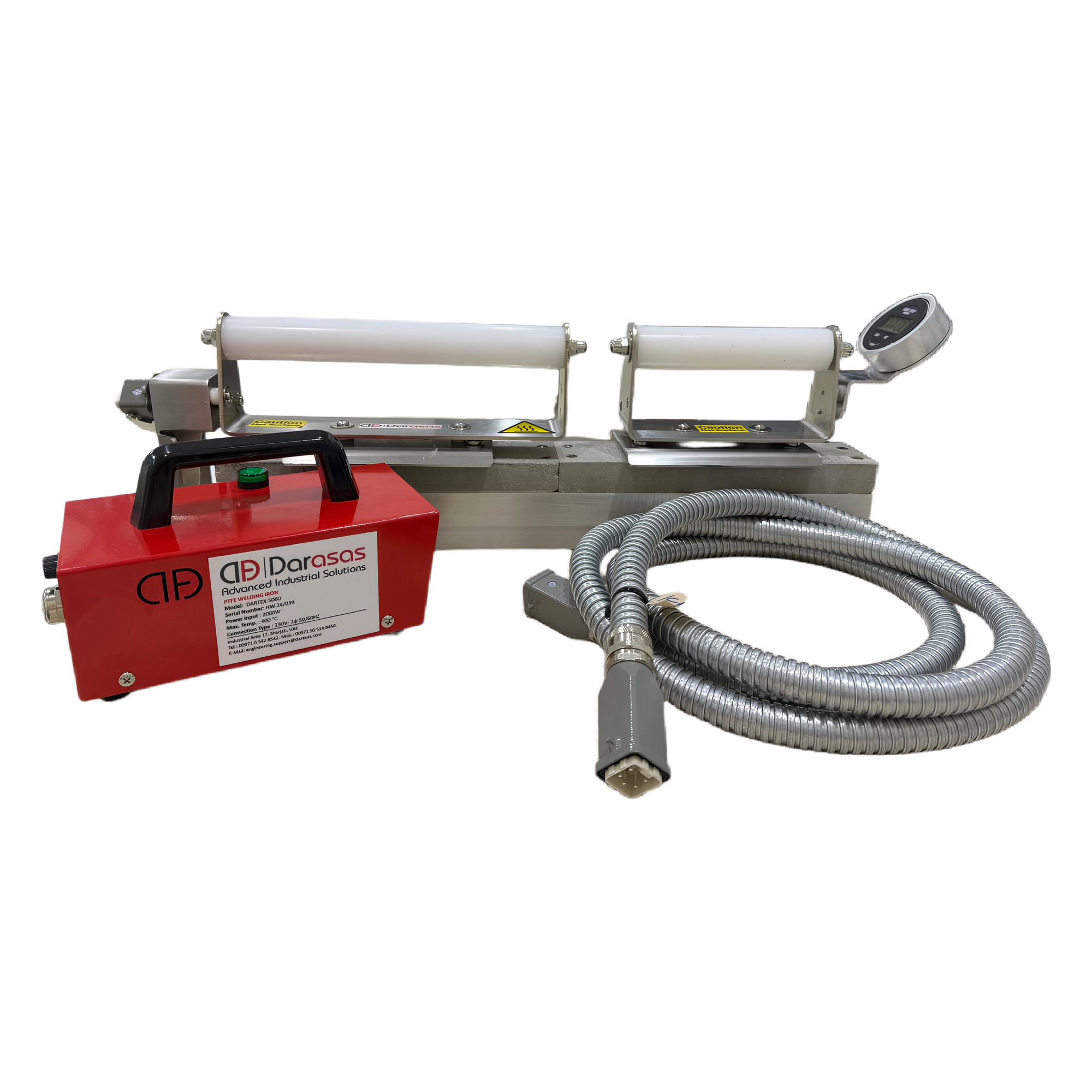

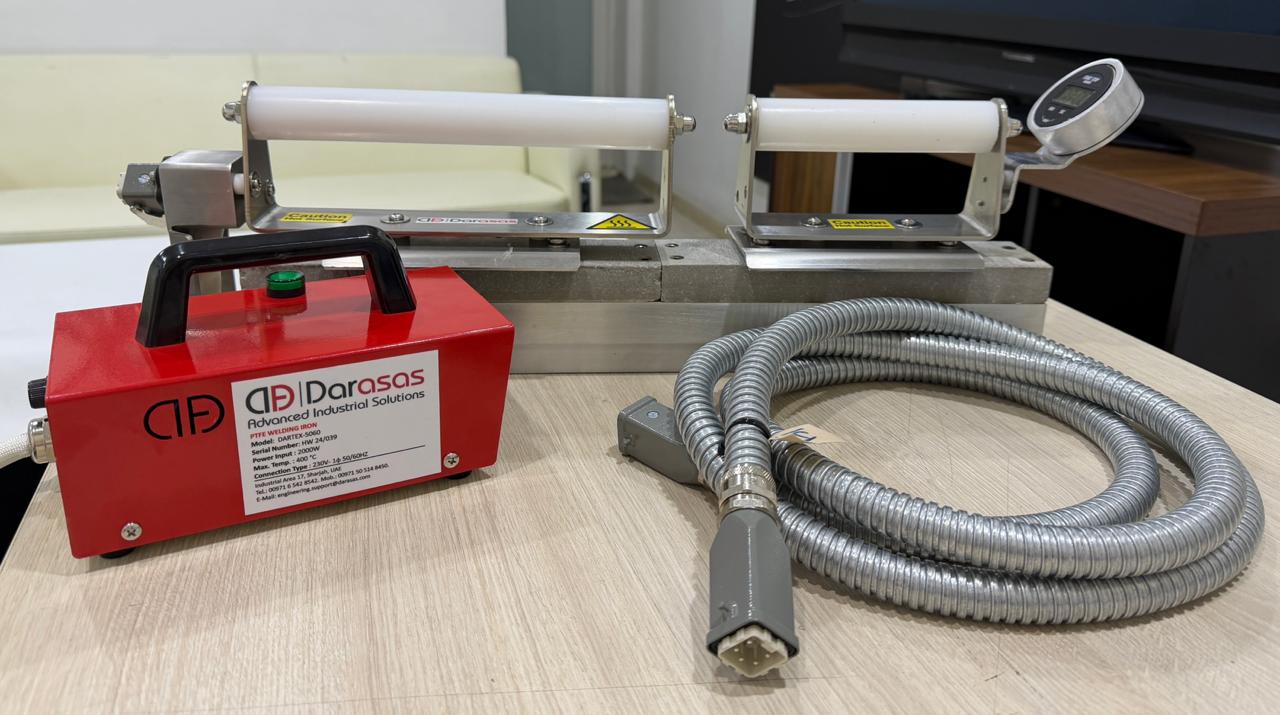

DarTex – PTFE Welding Iron

MAX TEMPERATURE: 400°C
MAX WELD LENGTH: 300 mm
POWER: 850 watt

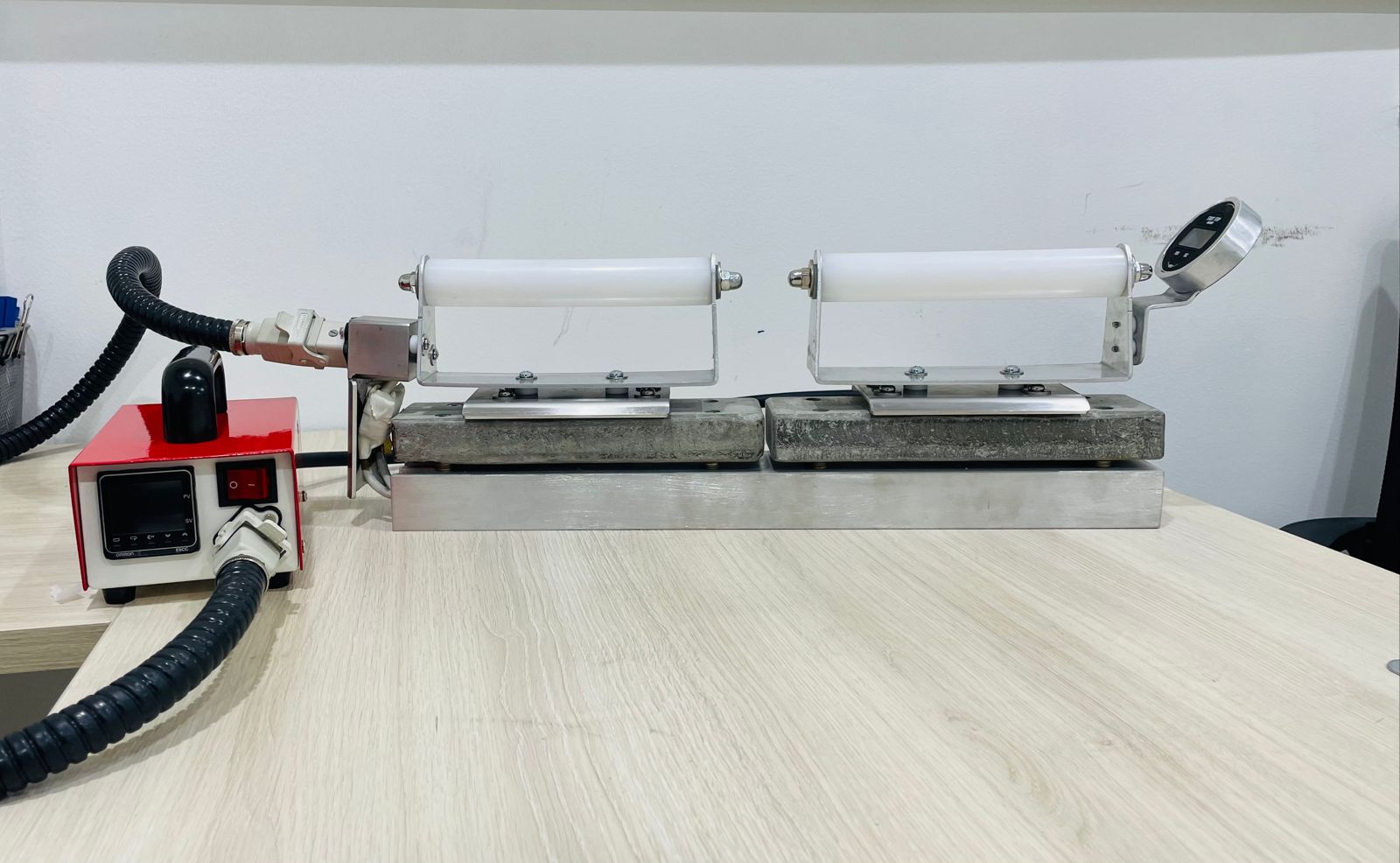

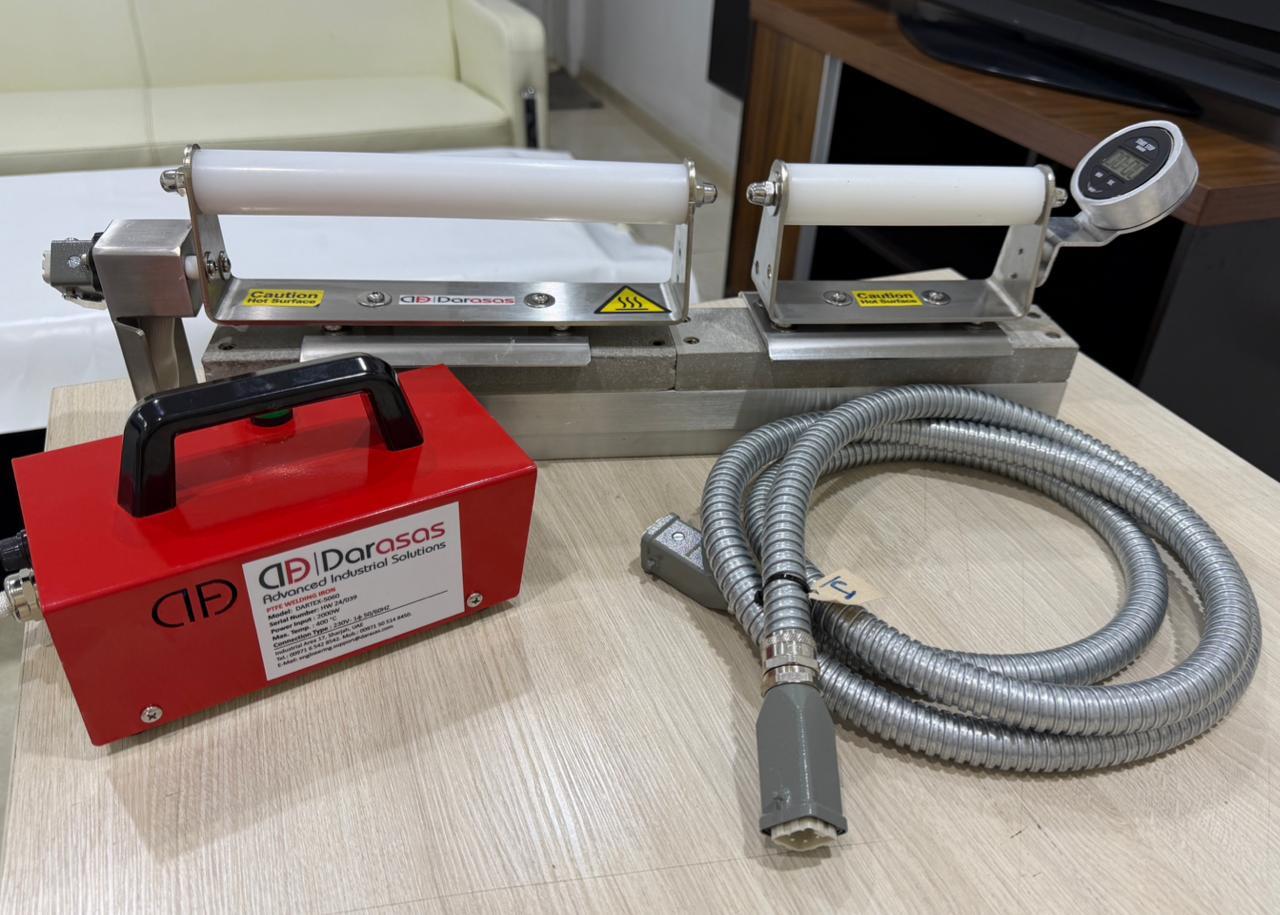

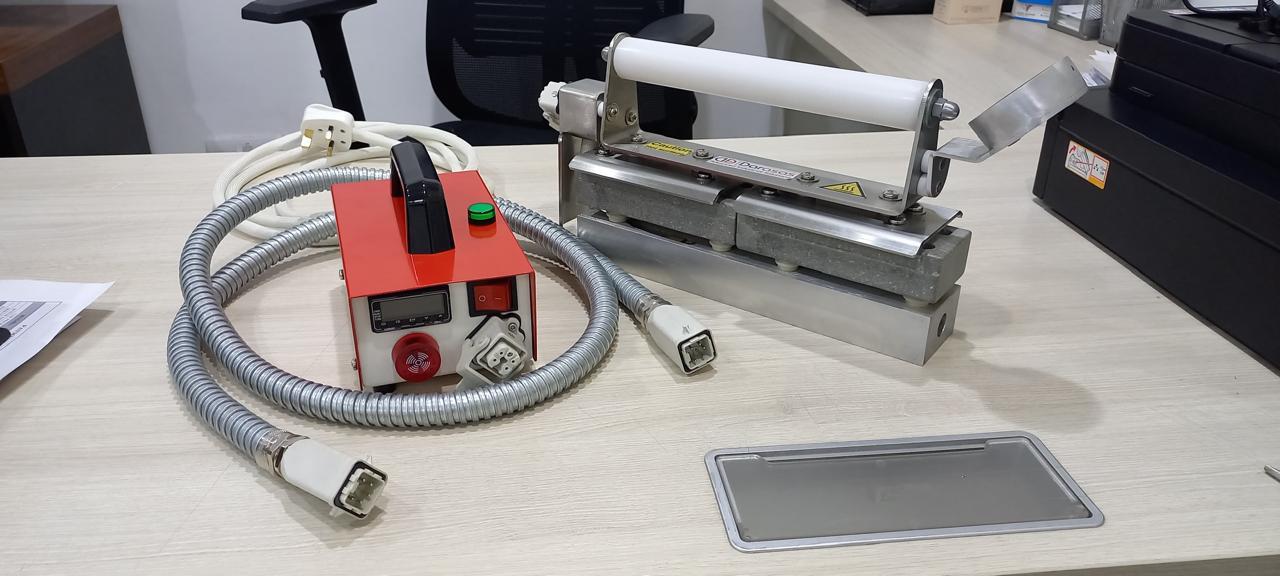

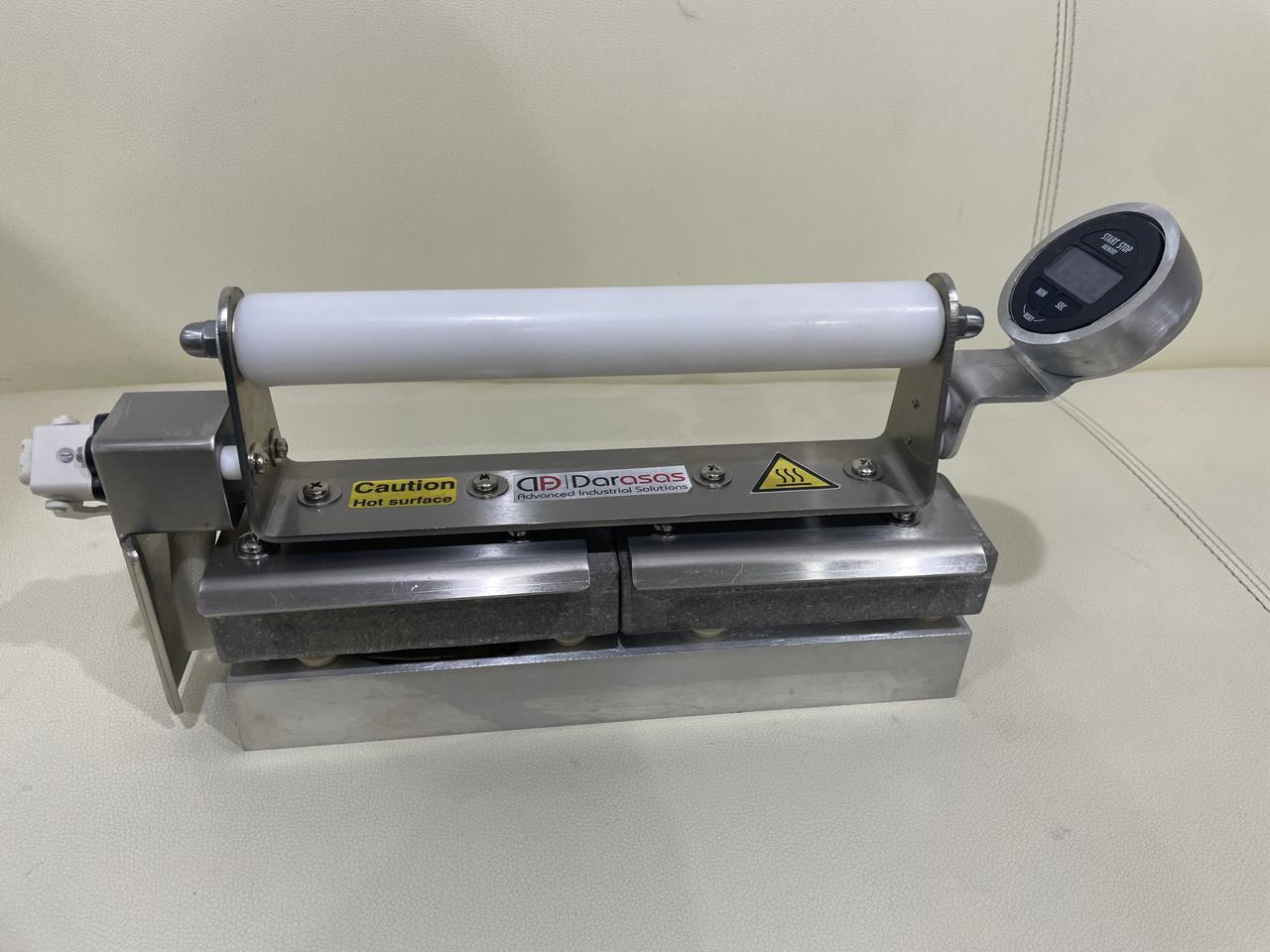

Dar Asas in-house brand, DarTex PTFE Welding Irons offering a compact, economic, low-power device for welding of industrial and architectural PTFE/Silicone coated glass fabrics and meshes. It is often required alone or as a complement of other PTFE welding equipment. This special lightweight tool is suitable for making small joints or welding patches to fabric panels that have been installed and are in need of a quick repair. The temperature and welding time can be exactly controlled thanks to the high-quality control unit.

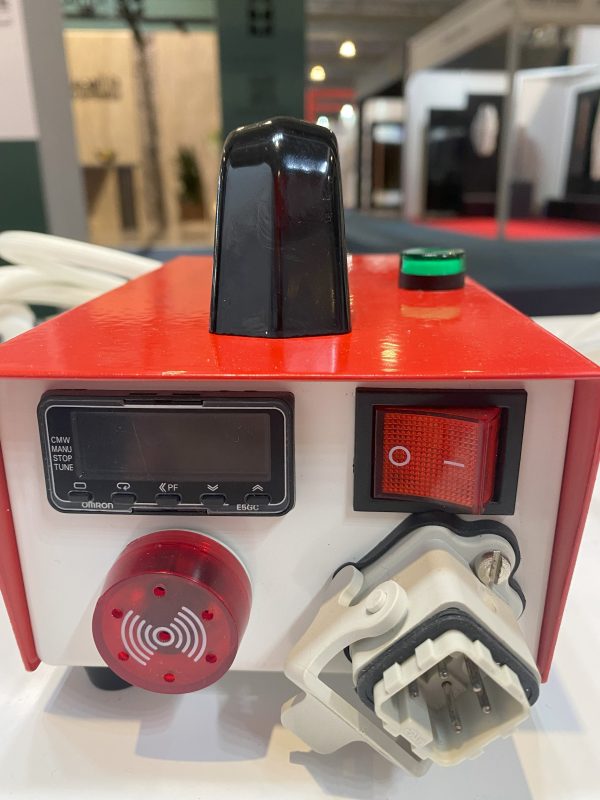

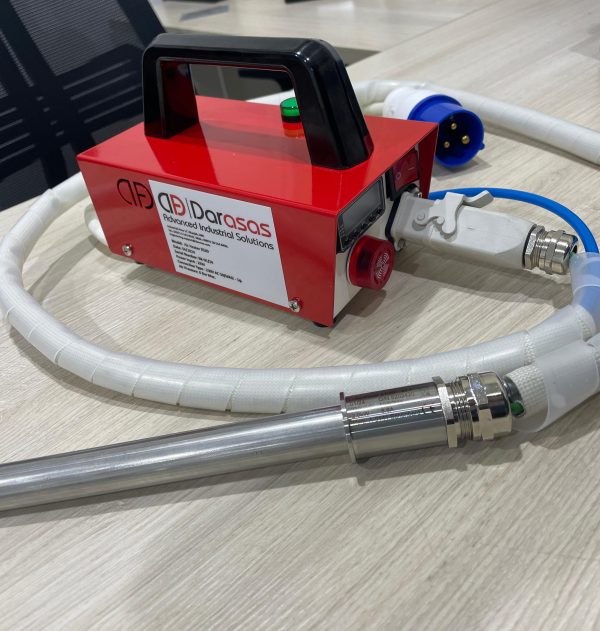

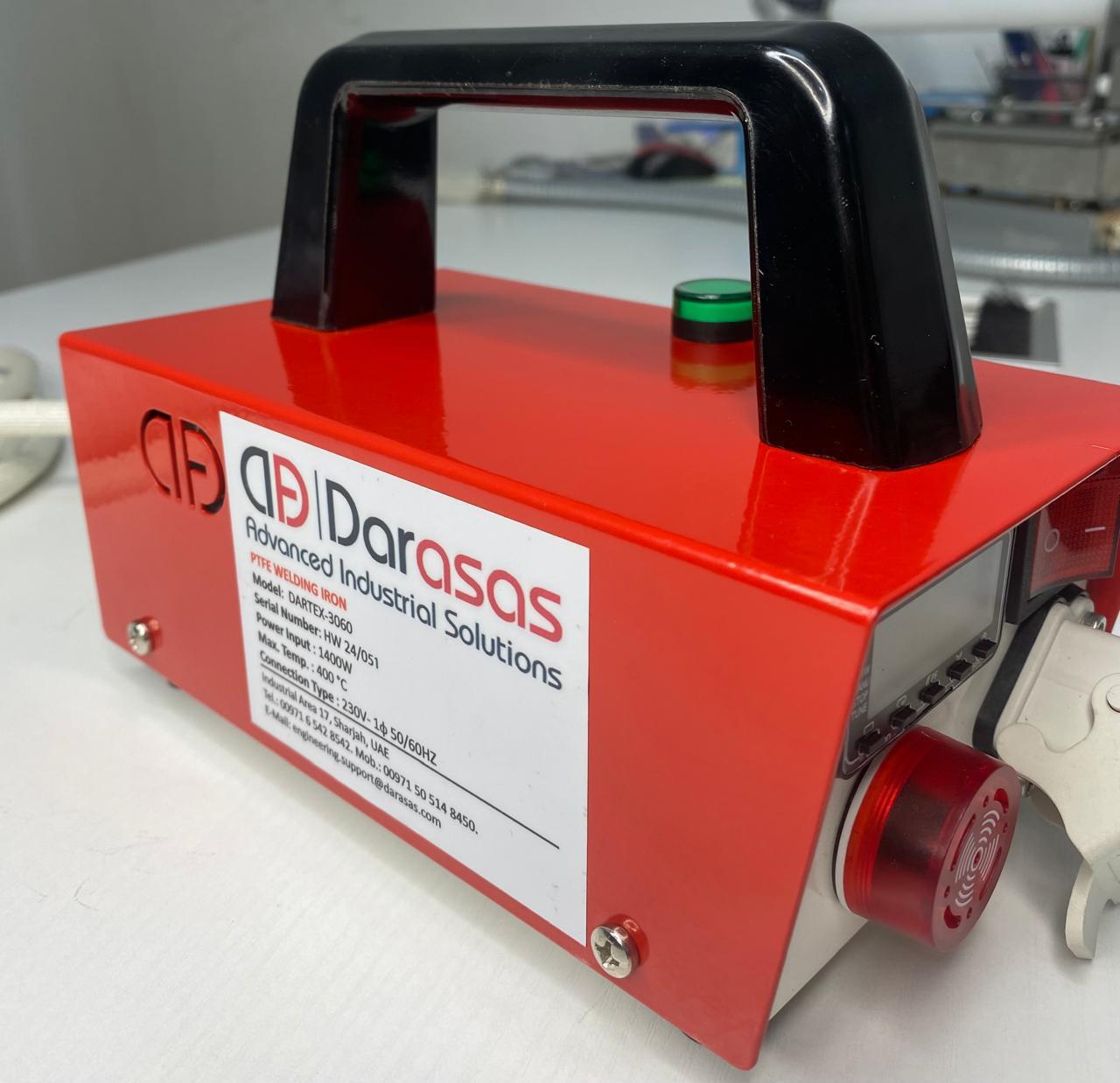

We offer a 230V and it is operated from a separate control unit. We can cater for any special requirements you require for PTFE welding irons.

Specifications

• Standard operating voltage 230V-AC 50/60HZ. (110 V AC available on request)
• Max. Heating power 3500 Watt (Depending on welding bar size)
• Standard welding bar width 60*300 mm & 60*200 mm (Max. customization width 100mm & length 500mm).
• Over-Temperature Alarm.
• Heating processes Indication lamp.
• PID control for precise temperature value.
• SSR electronic relay for fast switching, connected by heat sink for high performance.
• Flexible connector for heating tool and control unit for more reliability.
• Battery operated timer with Alarm, for adjusting welding time.
